MOTOBATT

Datasheet
Lithium Iron Phosphate (LiFePO₄) Battery

---

SPECIFICATIONS

Model No.
MOTOBATT-WM-51200-A

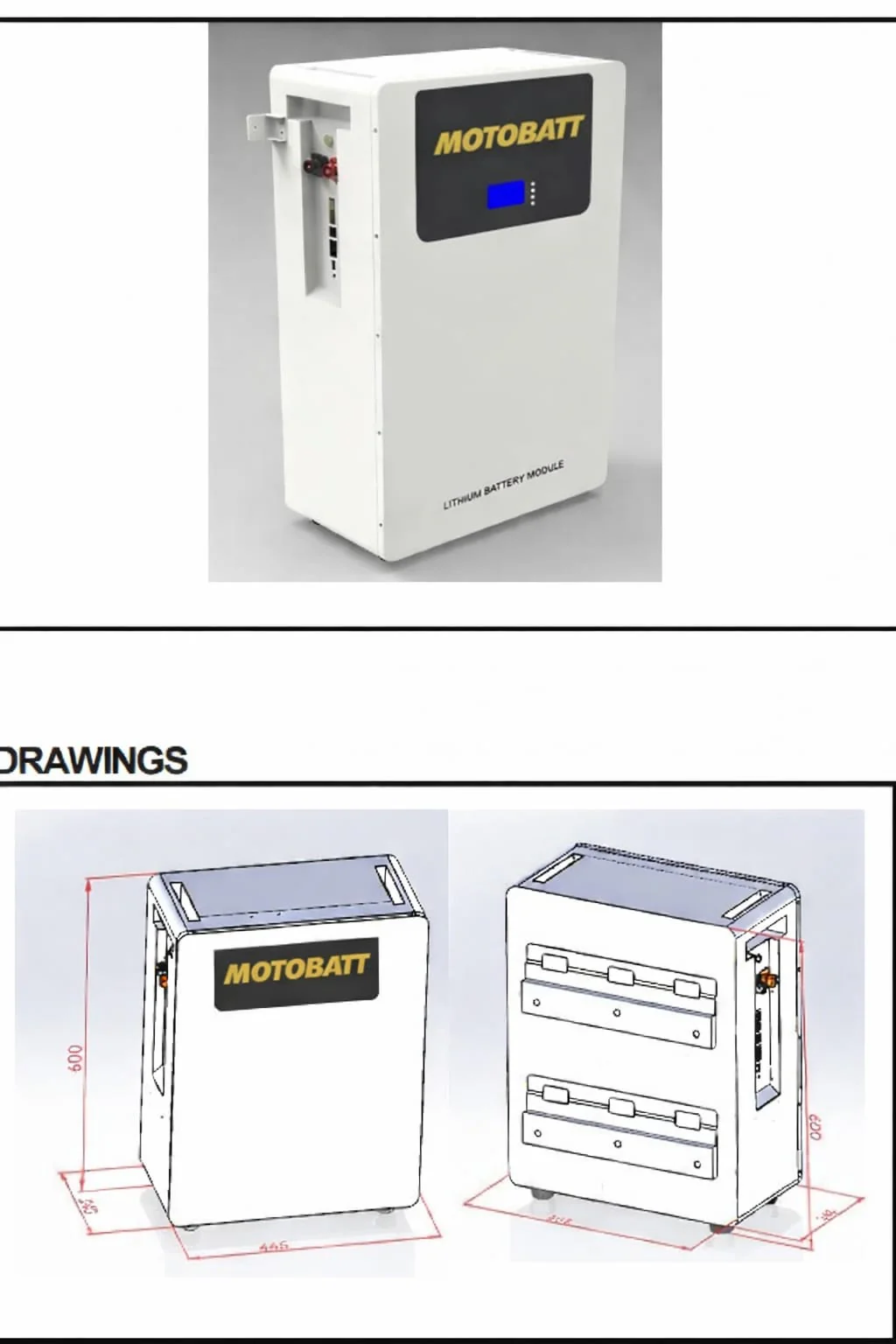

Dimensions

Length: 600 mm

Width: 465 mm

Height: 260 mm

Weight

About 83 kg



---

CHARACTERISTICS

Nominal Voltage: 51.2 V

Nominal Capacity: 200 Ah

Nominal Energy: 10240 Wh

Internal Impedance: ≤ 50 mΩ

Charge Voltage: 58.4 V

Discharge Cut-off Voltage: 40 V

Standard Charge Current: 100 A

Max. Charge Current: 150 A

Standard Discharge Current: 100 A

Max. Discharge Current: 200 A

Peak Discharge Current: 250 A ≤ 5 s

Cycle Life: ≥ 6000 (0.5C, 25°C, 80% DOD)

Operating Temperature

Charge: 0°C ~ +55°C

Discharge: -30°C ~ +55°C

Note:

Max. 16 parallel connections

---

CERTIFICATIONS

UN38.3
