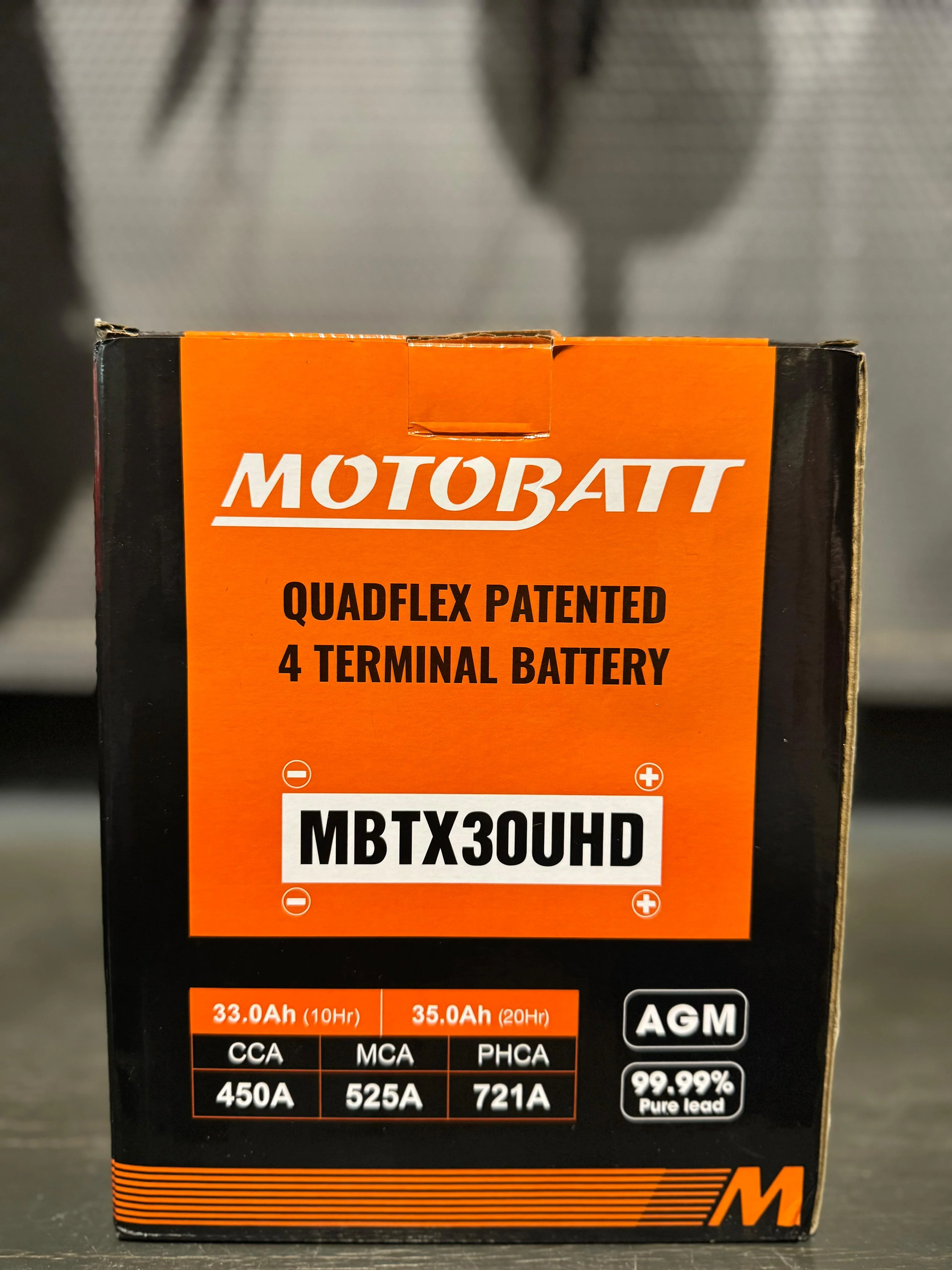

Battery Type	MBTX30UHD
Voltage	12
CCA	450A
MCA	513A
PHCA	705A
Capacity (10HR)	33Ah, C20 36Ah
Weight	10.40kg / 22.95Ibs
Dimensions (in / mm)	L: 6.54(166) W: 4.96(126) H: 6.89(175) TH: 7.56(192)
Assembly Figure Terminal Locations	4
Terminals	2 Black, 2 Red PART (MPC3)
Screws	2x Screws M6x12 (PART MPS4)
Terminal Caps	2 Black, 2 Red PART (MPC3)
Spacer	17mm Bottom (Part#MPC2), 2 Square Top Corners (Part#MPSC)

⚫ Patented Quad Terminal Design-Reduce carrying costs
⚫ 12V VRLA Hi Capacity Starting Battery
⚫ Absorbed Glass Mat(AGM)technology
⚫ Brass Terminals- superior conductivity
⚫ US DOT, IATA certified non-spillable
⚫ Highest AH Capacity in the Industry
⚫ Factory Activated-ready to Install
Nominal Voltage --------------------------------------------------- 12 volts(6cells)
Nominal Capacity 25℃(77℉)
20-hr. (1.65A to 10.50 volts) ---------------------------------------------- 35.0AH
10-hr. (3.30A to 10.50 volts) ---------------------------------------------- 33.0AH
5-hr. (6.60A to 10.20 volts) ----------------------------------------------27.06AH
1C. (33.0A to 9.60 volts) ------------------------------------------------23.1AH
3C. (99.0A to 9.60 volts) ----------------------------------------------- 12.87AH
Approximate Weight ---------------------------------------- 22.04lbs. (10.0kg)
Energy Density ( 20-hr rate ) --------------------1.62W-h / in3 ( 98.7W-h/1 )
Specific Energy ( 20-hr rate ) --------------------17.6W-h / lb ( 38.8W-h/kg )
Internal Resistance ( approx ) -----------------------------------18 milliohms
CCA(-0 4℉/-18℃,7.2V,30S) --------------------------------------450 amperes
CA(32℉/0℃,7.2V,30S) --------------------------------------------525 amperes
Shelf Life (% of normal capacity at 68℉/20℃) --- SOC% OCV
1 months ----------------------------------------------------------- 97% 12.78V
3 months ----------------------------------------------------------- 91% 12.70V
6 months ------------------------------------------------------------ 83% 12.5V
Operating Temperature Range
Discharge ------------------------------------------ -4℉(-20℃) to 122℉(50℃)
Charge -------------------------------------------- -40℉(-40℃) to 140℉(60℃)
Case ------------------------------------------------------------------------- ABS
Length: 6.54in(166mm) Width: 4.96in(126mm)
Height: 6.89in(175mm) TH: 7.56in(192mm)
Tolerances are ±0.04 inches (±1mm) and ±0.08
inches (±2mm) for height.
Features
Performance Specifications
MBTX30UHD
Terminal Dimensions (mm)
Physical Dimensions (in./mm)
Screw
