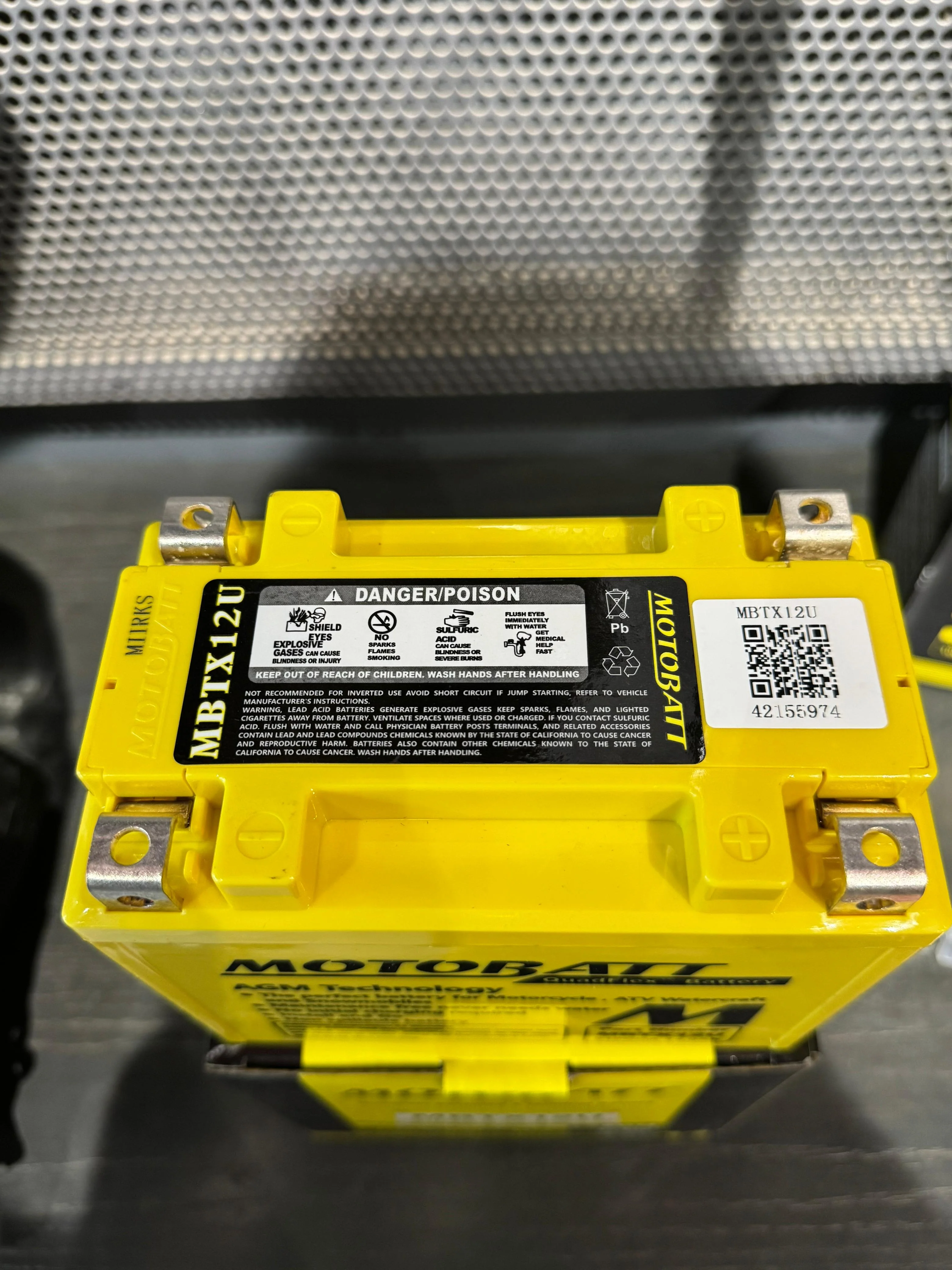

Battery Type	MBTX12U
Voltage	12V
CCA	200
MCA	275A
PHCA	451A
Capacity (10HR)	14Ah
Weight	4.40kg /9.7Ibs
Dimensions (in / mm)	L: 5.94(151) W: 3.43(87) H: 5.12(130) TH1: 5.31(135) TH2: 5.71(145)
Assembly Figure Terminal Locations	4
Terminals	2x Blocknut M6 (PART MPN2)
Screws	2x Screws M6x12 (PART MPS4)
Spacer	2, Bottom (Part: MPBS4) Spacer 1 = 5mm, Spacer 2 =1 0mm Total = 15mm

⚫ Patented Quad Terminal Design-Reduce carrying costs
⚫ 12V VRLA Hi Capacity Starting Battery
⚫ Absorbed Glass Mat(AGM)technology
⚫ Brass Terminals- superior conductivity
⚫ US DOT, IATA certified non-spillable
⚫ Highest AH Capacity in the Industry
⚫ Factory Activated-ready to Install
Nominal Voltage --------------------------------------------------- 12 volts(6cells)
Nominal Capacity 25℃(77℉)
20-hr. (0.70A to 10.50 volts) ---------------------------------------------- 14.8AH
10-hr. (1.40A to 10.50 volts) ---------------------------------------------- 14.0AH
5-hr. (2.80A to 10.20 volts) ---------------------------------------------- 11.48AH
1C. (14.0A to 9.60 volts) ------------------------------------------------9.80AH
3C. (42.0A to 9.60 volts) -----------------------------------------------5.46AH
Approximate Weight ----------------------------------------9.70lbs. (4.40kg)
Energy Density ( 20-hr rate ) --------------------1.62W-h / in3 ( 98.7W-h/1 )
Specific Energy ( 20-hr rate ) --------------------17.6W-h / lb ( 38.8W-h/kg )
Internal Resistance ( approx ) -----------------------------------18 milliohms
CCA(-0 4℉/-18℃,7.2V,30S) -------------------------------------210amperes
CA(32℉/0℃,7.2V,30S) --------------------------------------------275 amperes
Shelf Life (% of normal capacity at 68℉/20℃) --- SOC% OCV
1 months ----------------------------------------------------------- 97% 12.78V
3 months ----------------------------------------------------------- 91% 12.70V
6 months ------------------------------------------------------------ 83% 12.5V
Operating Temperature Range
Discharge ------------------------------------------ -4℉(-20℃) to 122℉(50℃)
Charge -------------------------------------------- -40℉(-40℃) to 140℉(60℃)
Case ------------------------------------------------------------------------- ABS
Length: 5.94in(151mm) Width: 3.43in(87mm)
Height: 5.12in(130mm) T.Height: 5.12in(130mm)
Tolerances are ±0.04 inches (±1mm) and ±0.08
inches (±2mm) for height.
Features
Performance Specifications
MBTX12U
Terminal Dimensions (mm)
Physical Dimensions (in./mm)
SCREW
