MOTOBATT

Datasheet

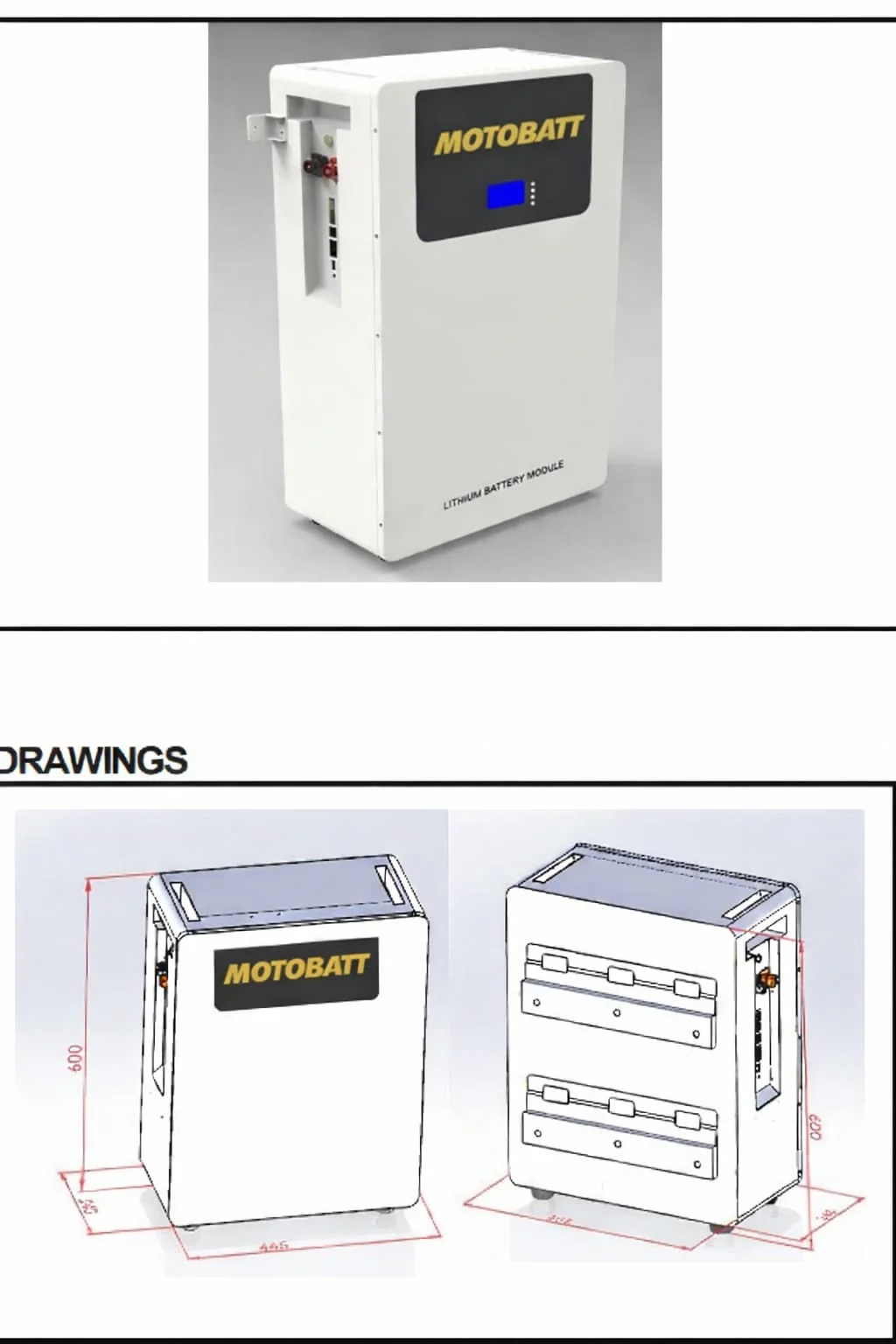

Lithium Iron Phosphate (LiFePO4) Battery

---

SPECIFICATIONS

Model No.
MOTOBATT-WM-48100

Dimensions

Length: 690 mm

Width: 425 mm

Height: 210 mm

Weight

About 59 kg



---

CHARACTERISTICS

Nominal Voltage: 51.2 V

Nominal Capacity: 100 Ah

Nominal Energy: 5120 Wh

Internal Impedance: ≤ 50 mΩ

Charge Voltage: 58.4 V

Discharge Cut-off Voltage: 40 V

Standard Charge Current: 20 A

Max. Charge Current: 100 A

Standard Discharge Current: 20 A

Max. Discharge Current: 100 A

Peak Discharge Current: 200 A ≤ 5 s

Cycle Life (80% DOD): ≥ 4500 cycles

Operating Temperature

Charge: 0°C ~ +45°C

Discharge: −20°C ~ +55°C

Note: Max. 12 parallel connection
